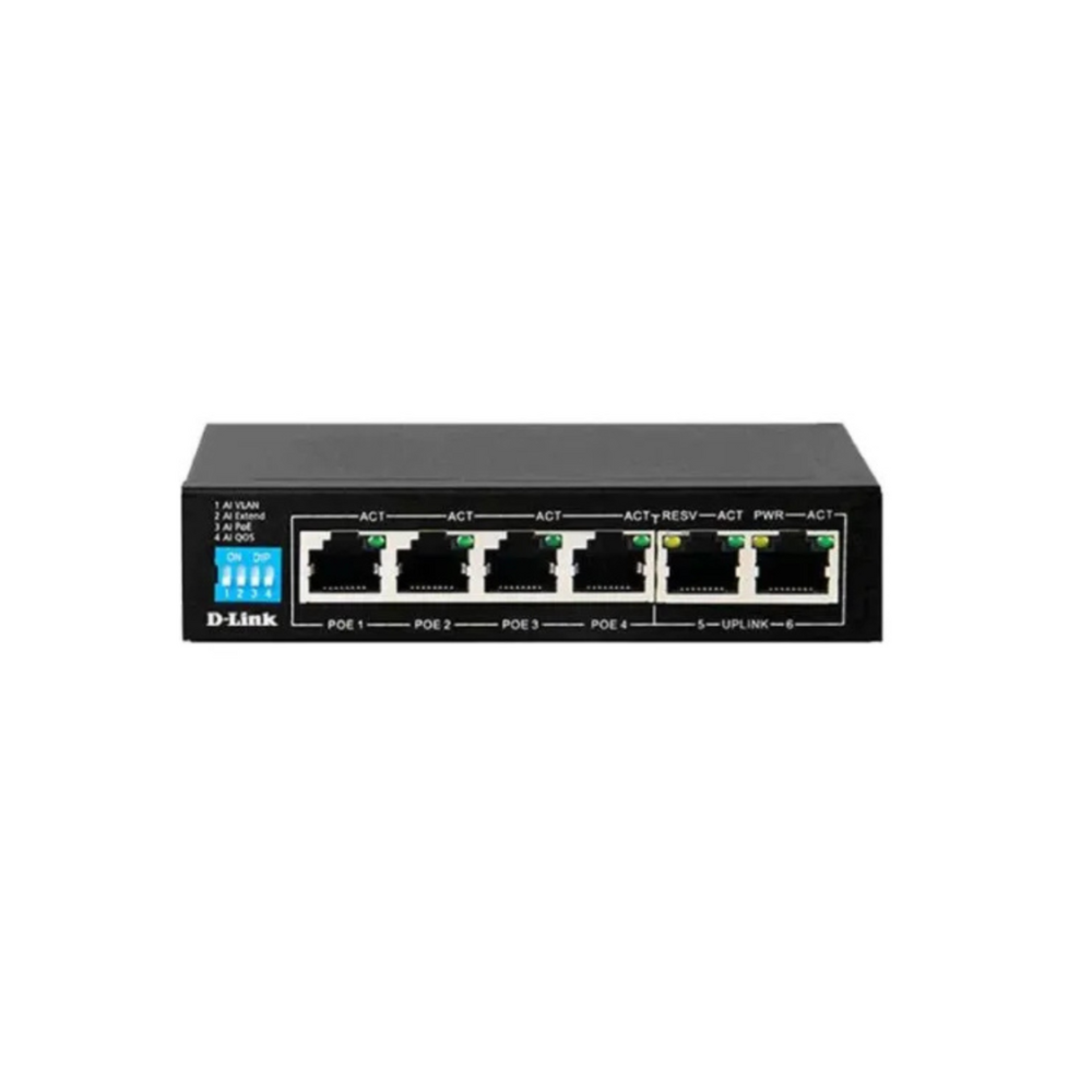

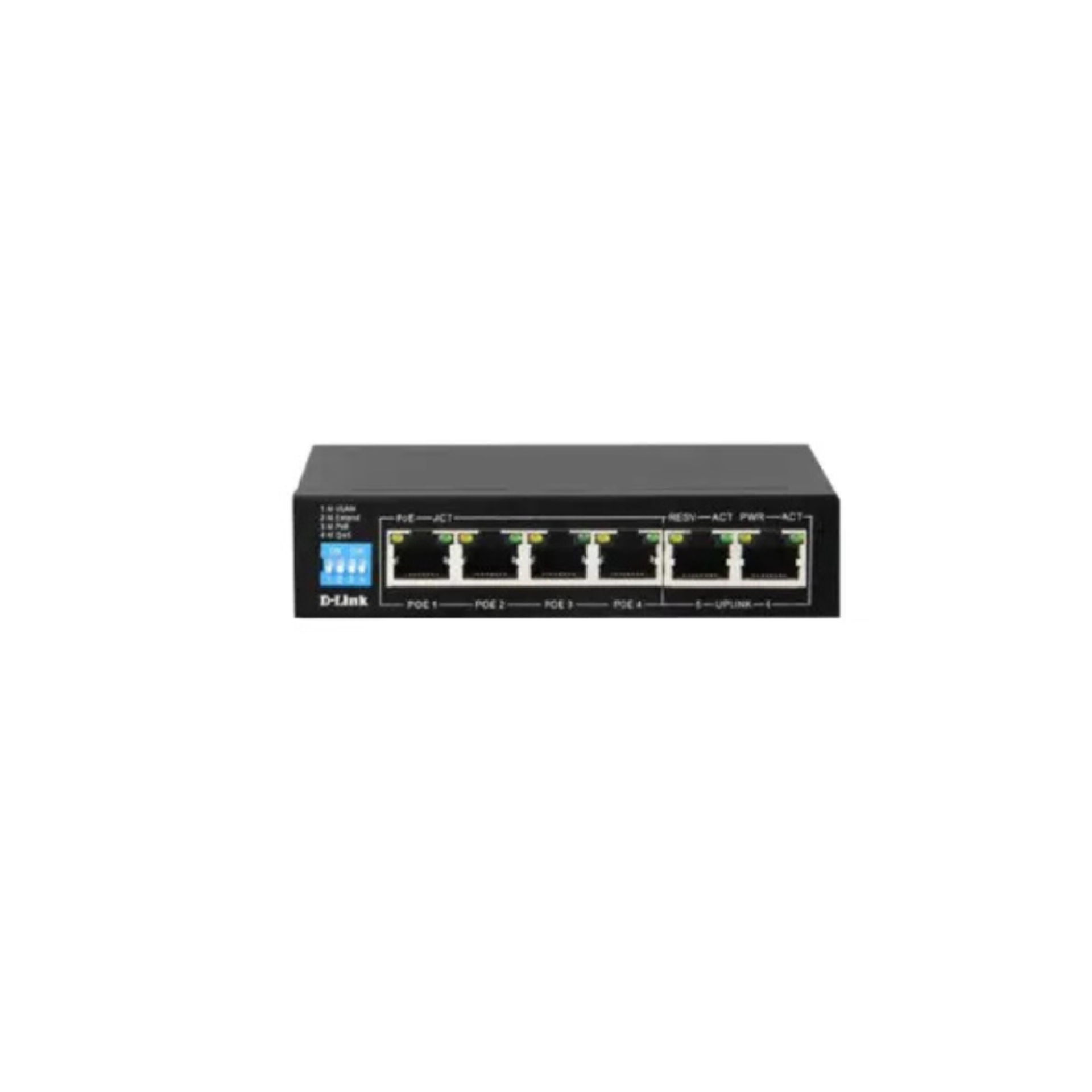

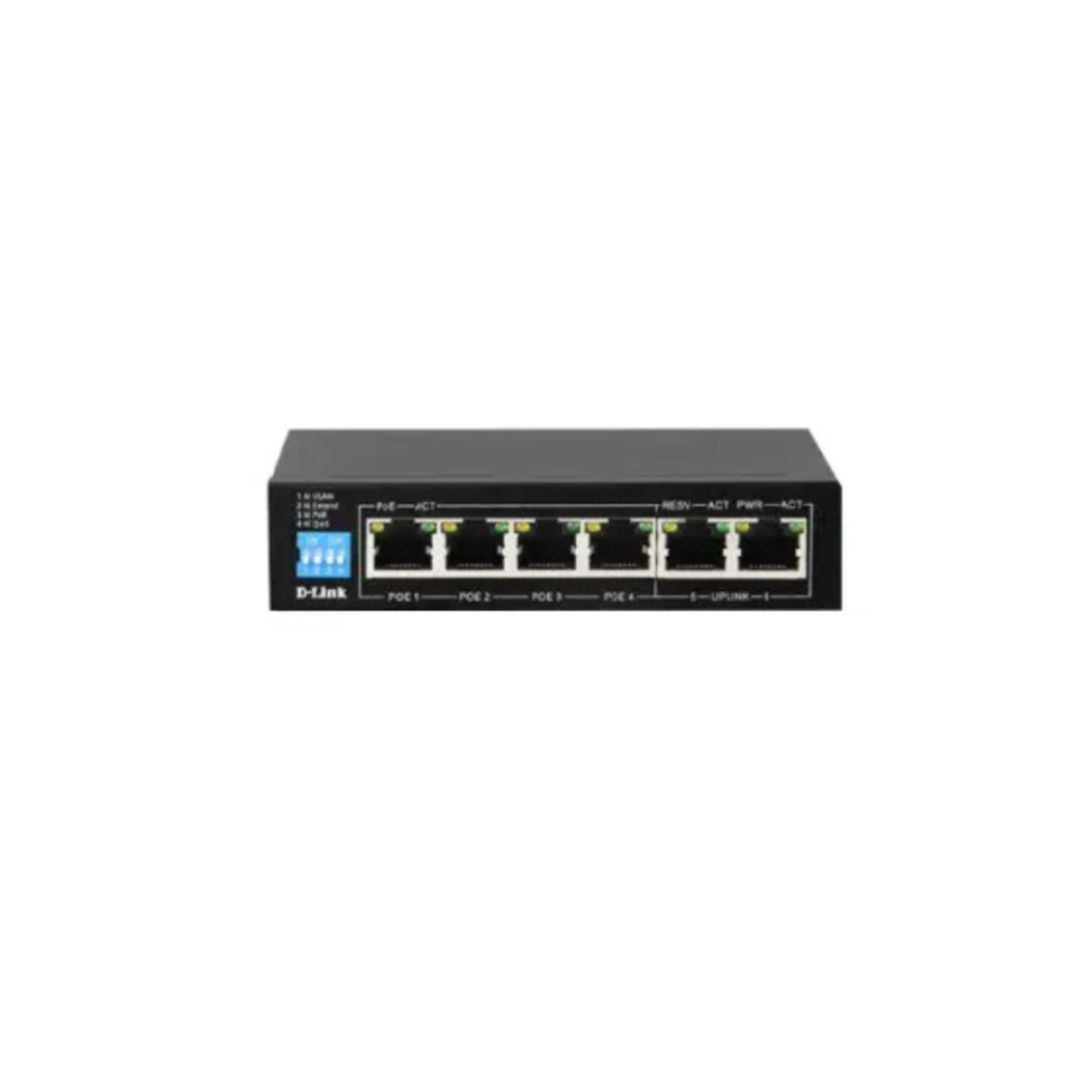

D-Link DGS-F1006P-E 250M 6-Port Gigabit PoE Switch Description
The D-Link DGS-F1006P-E is a compact unmanaged gigabit switch designed for small businesses, surveillance networks, and smart deployments. It features Power over Ethernet (PoE) support and extended range capability, allowing you to power and connect devices such as IP cameras, access points, and VoIP phones using a single Ethernet cable.
D-Link DGS-F1006P-E Key Features
-
6 × 10/100/1000 Mbps Ethernet ports
-
4 PoE+ ports (IEEE 802.3af/at) providing up to 30 W per port
-
Total PoE power budget of 60 W
-
2 uplink ports for connecting to routers or backbone switches
-
“Extend” mode enables data and power transmission up to 250 m on ports 1–4
-
Plug-and-play installation with no configuration required
-
Compact, fanless, silent design with metal housing
-
Built-in surge protection for network reliability
D-Link DGS-F1006P-E Specifications
| Feature | Details |
|---|---|
| Model | DGS-F1006P-E |
| Port Count | 6 ports (4 PoE, 2 uplink) |
| Port Speeds | 10 / 100 / 1000 Mbps |
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE per Port | Up to 30 W |
| Total PoE Budget | 60 W |
| Extended Range Support | Up to 250 m (ports 1–4) |
| Switching Capacity | 12 Gbps |
| Dimensions (W × D × H) | 125 × 75 × 27 mm |
| Power Supply | External adaptor 52 V |
| Operating Temp / Humidity | 0°C to 40°C, 0%–95% RH |
D-Link DGS-F1006P-E Price in Kenya
| Product | Price Range (KES) |
|---|---|
| D-Link DGS-F1006P-E 6-Port Gigabit PoE Switch | KSh 7,000 – 9,000 |
D-Link DGS-F1006P-E Performance and Usage
This switch is ideal for powering PoE devices like IP cameras and wireless access points without separate power adapters. The extended range feature supports longer cable runs for devices installed farther from the network hub. The two uplink ports ensure easy integration with existing routers or backbone switches, while the fanless design makes it suitable for quiet environments.
D-Link DGS-F1006P-E Applications
-
Surveillance Networks: Power and connect IP cameras over long distances
-
Wireless Networks: Ideal for powering access points without additional wiring
-
Small Offices: Centralized power and data for devices like phones and cameras
-
IoT Setups: Support smart devices in buildings or industrial setups
D-Link DGS-F1006P-E Benefits and Considerations
Benefits
-
Combines power and data through a single cable
-
Extended range up to 250 m for flexible installations
-
Gigabit speeds on all ports for high performance
-
Quiet, compact, and easy to install
-
Surge protection for better reliability
Considerations
-
Limited PoE budget (60 W total) for high-power deployments
-
“Extend” mode may lower bandwidth over long cables
-
Unmanaged design—no VLAN or advanced network control
-
Not suitable for large-scale enterprise networks
D-Link DGS-F1006P-E Buyer FAQs
Q1: How much power can each PoE port deliver?
A1: Each PoE port can deliver up to 30 W, within the 60 W total power budget.
Q2: Are all six ports PoE-enabled?
A2: No, only ports 1–4 support PoE. Ports 5 and 6 are uplink ports.
Q3: Does extended mode affect speed?
A3: Yes, performance may decrease depending on cable length and quality.
Q4: Is configuration required?
A4: No, it is plug-and-play and works right out of the box.
Q5: Can it be used outdoors?
A5: It is intended for indoor use; use proper enclosures if installing outdoors.
