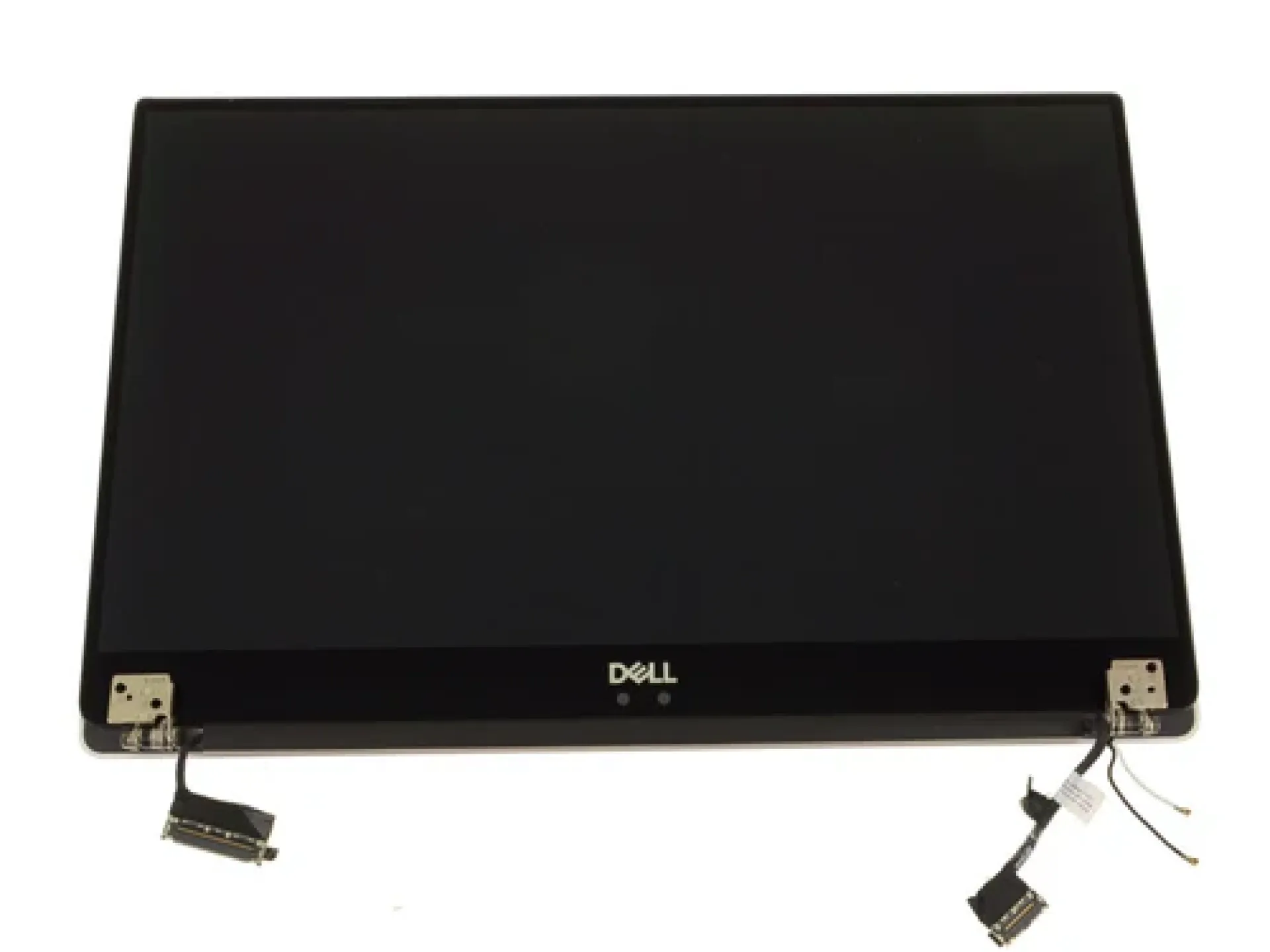

Dell XPS 13 9305 4K Touch Screen Assembly

It is vital to confirm your laptop originally came with the 4K screen. Upgrading from FHD to 4K is often not possible due to different motherboard connectors.

• Display Size: 13.3-inch (InfinityEdge).

• Resolution: UHD 4K (3840 x 2160).

• Connector: 40-pin eDP (The FHD version uses 30-pin).

• Brightness: 400–500 nits.

• Compatibility: The 9305 shares the same screen assembly as the XPS 9380 and XPS 7390 (Clamshell). Look for Dell Part Numbers (DP/N) like FD6NC or VCN84.

Dell XPS 13 9305 4K Touch Screen Assembly

The Dell XPS 13 9305 4K Touch Screen Assembly is the flagship display replacement for Dell’s premium ultra-portable laptop. This is a complete "hinge-up" assembly, meaning the 4K LCD panel, touch digitizer, top cover (lid), and internal cables are pre-assembled for a seamless swap. The Dell XPS 13 9305 4K Touch Screen Assembly Price in Kenya is KSh 44,280.

Who Should Buy This Screen? This is for XPS 13 9305 owners who require the highest possible pixel density for professional photo editing, 4K video color grading, or high-end content consumption. Because the XPS 9305 uses an ultra-slim InfinityEdge bezel, the 4K panel is factory-bonded to the frame; if your glass is cracked or the display is bleeding, this full assembly is the only reliable way to restore the laptop's $8.29$ million-pixel visual fidelity.

Dell XPS 13 9305 4K Screen Price Table

Technical Specifications

Key Professional Features

• Breathtaking 4K UHD Detail: With four times the pixels of a standard Full HD screen, the 4K panel provides incredible sharpness. At 331 Pixels Per Inch (PPI), individual pixels are invisible to the naked eye, making it ideal for high-precision design work.

• InfinityEdge Display: The assembly maintains the iconic 3-sided narrow bezel, providing a nearly borderless viewing experience that fits a 13.3-inch screen into an 11-inch form factor.

• Corning® Gorilla® Glass 4: The touchscreen is protected by specialized glass that is significantly more resistant to scratches and drops than standard display glass, ensuring long-term durability for mobile professionals.

• Wide-Angle IPS View: The In-Plane Switching (IPS) panel offers a $178^\circ$ viewing angle with zero color shift, allowing you to share your screen with colleagues during meetings without loss of clarity.

• High Contrast & Luminance: Boasting a 1500:1 contrast ratio and 400 nits of brightness, this screen is vibrant enough for outdoor use while delivering the deep blacks needed for movie watching.

Important Installation Notes

[!CAUTION]

40-Pin Compatibility: Ensure your XPS 9305 was originally equipped with a 4K screen. 4K assemblies use a 40-pin connector, whereas FHD models often use a 30-pin cable; they are not interchangeable without changing the motherboard cable.

• Hinge-Up Assembly: This is a "Complete Display" replacement. You do not need to separate the LCD from the glass, which is nearly impossible on this model without damaging the panel.

• Battery Disconnect: Always unplug the internal battery before touching the eDP display connector to avoid blowing the backlight circuit.

Pros and Cons

Conclusion

The Dell XPS 13 9305 4K Touch Screen Assembly is the ultimate restoration part for Dell’s premier ultra-portable. For KSh 44,280, you are restoring the laptop to its peak performance state, ensuring you continue to enjoy the industry-leading display quality that defines the XPS brand.
