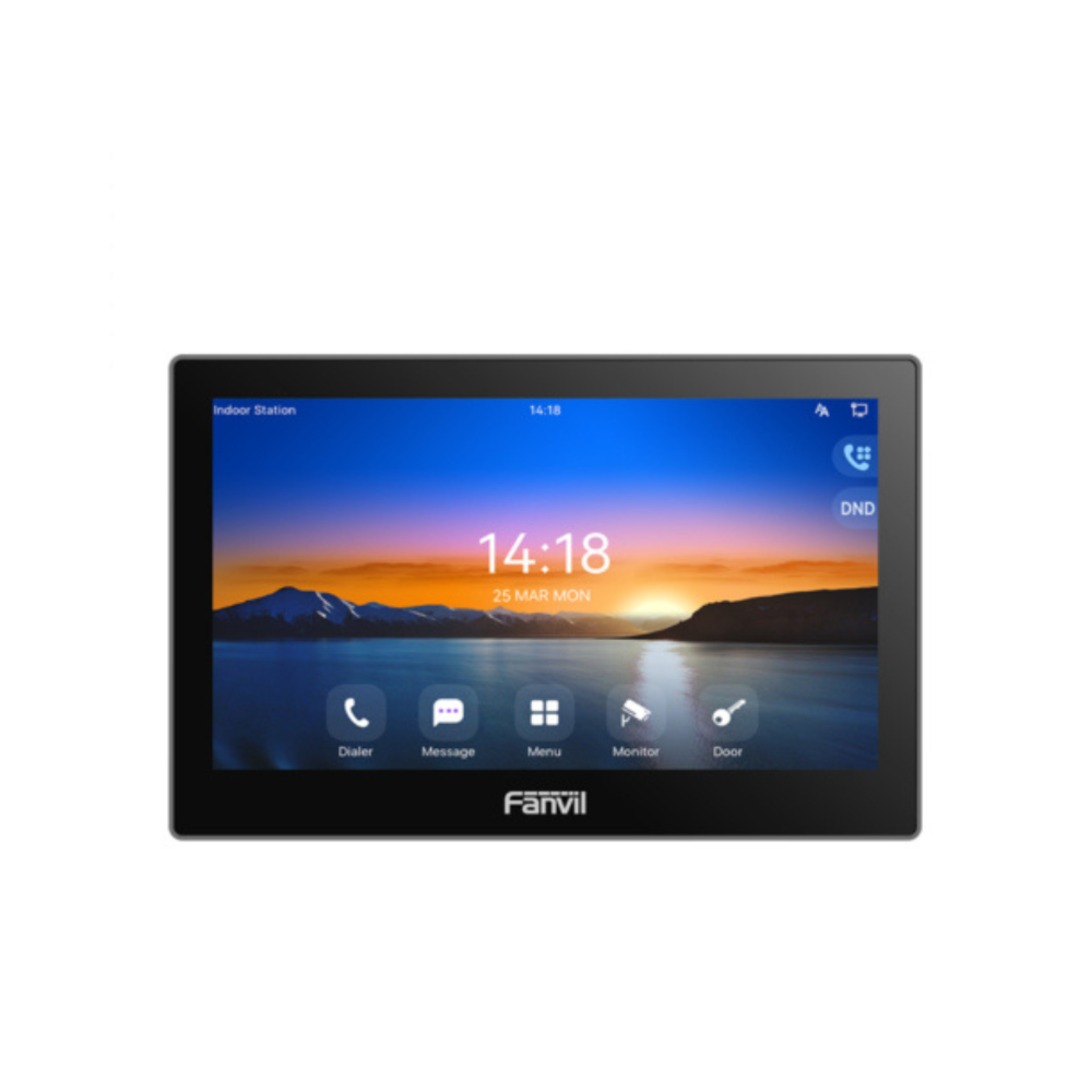

Fanvil i504W SIP Indoor Station

Fanvil i504W SIP Indoor Station Overview

The Fanvil i504W is a SIP-based indoor station that integrates audio/video intercom, access control, and security monitoring. It features a large color touchscreen, HD audio, and support for IP cameras and door phones. Ideal for apartments, offices, and gated communities, it allows users to manage calls, monitor entrances, and control access from a single interface.

Fanvil i504W SIP Indoor Station Key Features

• Display: 7-inch capacitive touchscreen (1024 × 600 resolution)

• Operating System: Linux

• Audio: HD voice with G.722 and Opus codecs

• Video: H.264 (default), H.265 (optional), up to 1080p at 30fps

• Speaker: 4Ω, 2W built-in speaker

• Microphone: Integrated with Acoustic Echo Cancellation

• Network:

  • 1× 10/100Mbps Ethernet port

  • Optional 2.4GHz Wi-Fi

• Power Supply: 12V DC (1A) or PoE

• Interfaces:

  • 8× alarm input

  • 1× short circuit output

  • 1× short circuit input

• Installation: Wall-mounted

• Operating Conditions:

  • Temperature: -10°C to 45°C

  • Humidity: 10% to 90% RH (non-condensing)

Fanvil i504W SIP Indoor Station Specifications

Fanvil i504W SIP Indoor Station Price in Kenya

Fanvil i504W SIP Indoor Station Design and Build

• Sleek, modern design with plastic panel

• Large touchscreen for intuitive control

• Wall-mountable for space-saving installation

• Durable build for indoor environments

• LED indicators for status and alerts

Fanvil i504W SIP Indoor Station System Applications

• Ideal for residential buildings, offices, and gated communities

• Integrates with IP cameras and SIP door phones

• Supports remote access and monitoring

• Compatible with third-party SIP platforms

• Enables centralized security and communication control

Fanvil i504W SIP Indoor Station Performance

• High-quality two-way audio with echo cancellation

• Real-time video monitoring from connected devices

• Responsive touchscreen interface

• Reliable network connectivity via Ethernet or Wi-Fi

• Efficient power options with PoE support

Fanvil i504W SIP Indoor Station Ideal Use Cases

• Apartment and condo intercom systems

• Office building access control

• Security monitoring stations

• Visitor management and door entry

• Integrated smart building solutions

Fanvil i504W SIP Indoor Station FAQs

Does it support PoE?

Yes, it can be powered via PoE or a 12V DC adapter.

Can it connect to IP cameras?

Yes, it supports real-time video from third-party IP cameras.

Is it compatible with SIP platforms?

Yes, it works with standard SIP-based systems.

Does it support Wi-Fi?

Yes, 2.4GHz Wi-Fi is available as an optional feature.
