HP Spectre x360 14-ea OLED Touch Screen Replacement

• Screen Size: 13.5-inch (Diagonal).

• Resolution: 3K2K (3000 x 2000) or FHD (1920 x 1280) depending on your specific variant.

• Connector: 40-pin eDP.

• Brightness: 400 nits (typical) up to 500 nits (HDR).

• Color Gamut: 100% DCI-P3 for professional-grade color accuracy.

• Common Part Numbers: M22154-001, M22155-001, M22157-001.

HP Spectre x360 14-ea OLED Touch Screen Replacement

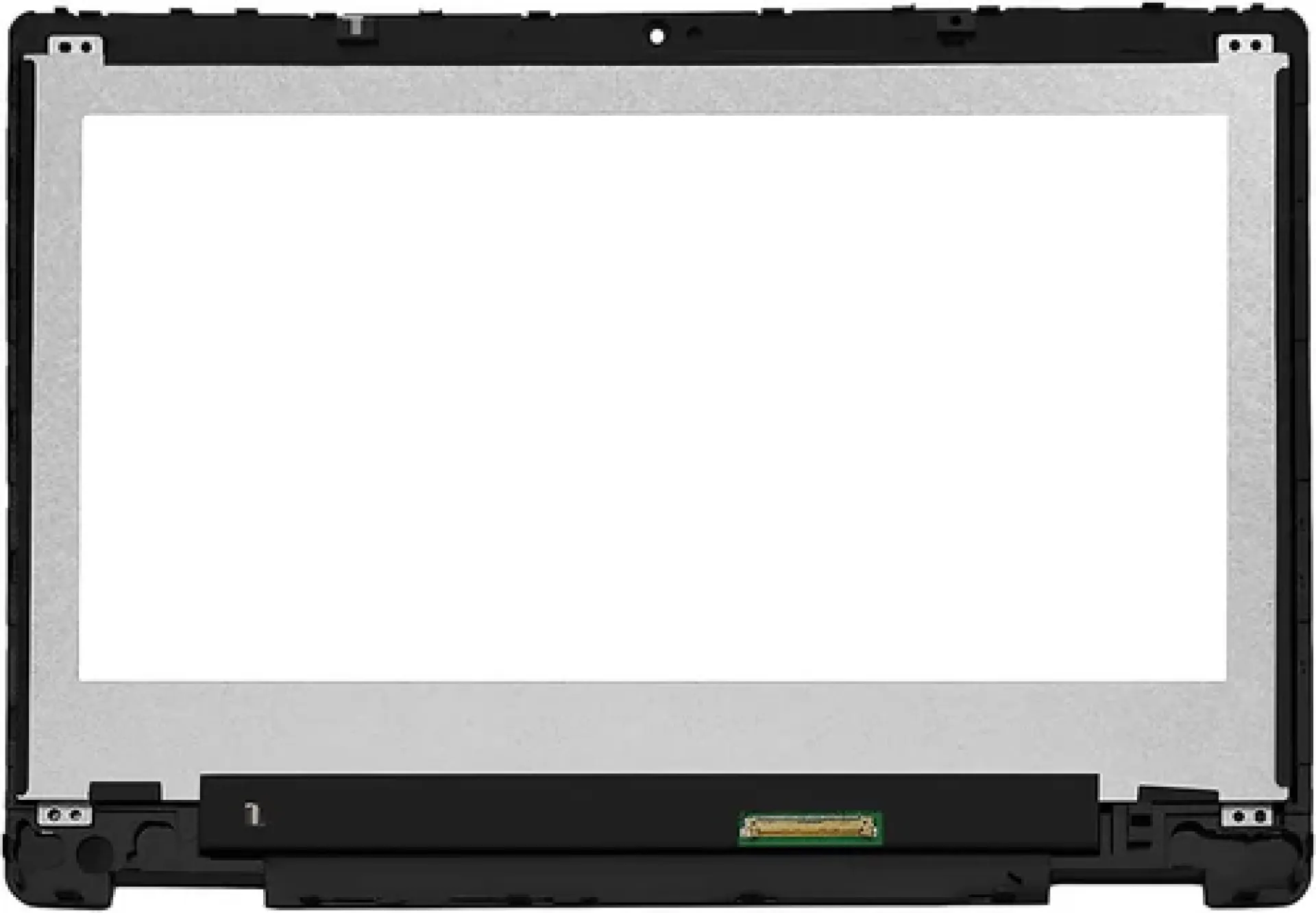

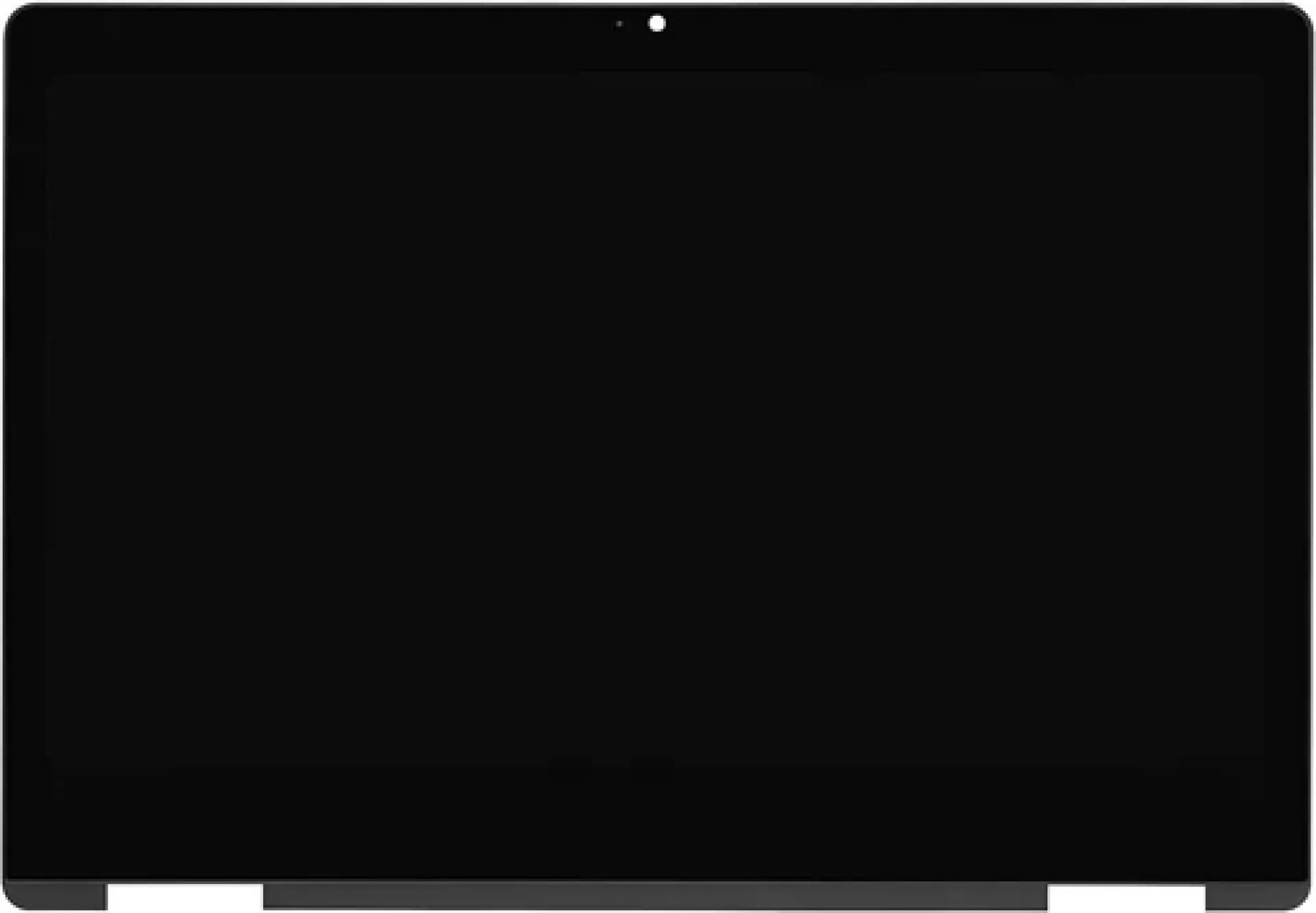

The HP Spectre x360 14-ea OLED Touch Screen Replacement is the ultra-premium display assembly for the 14-ea series (including 14-ea0xxx, 14-ea1xxx, and 14-ea0023dx). This part is a "Full Combo" featuring the 13.5-inch 3K2K OLED panel and the capacitive touch digitizer glass factory-bonded together. The HP Spectre x360 14-ea OLED Touch Screen Replacement Price in Kenya is KSh 28,080.

Who Should Buy This Screen? This replacement is essential for Spectre 14-ea owners who have suffered a cracked screen, touch failure, or "OLED burn-in." Because the 14-ea uses a unique 3:2 aspect ratio, it requires this specific assembly to maintain the taller workspace optimized for productivity. For KSh 28,080, you restore the cinematic 3000x2000 resolution and infinite contrast that defines the high-end Spectre experience.

HP Spectre x360 14-ea Price Table

Technical Specifications

Key Professional Features

• Vivid 3K2K OLED Visuals: Features self-lit pixels that provide an infinite contrast ratio and pure blacks, far surpassing the visual depth of standard IPS panels.

• Productivity-First 3:2 Ratio: The taller screen allows for more vertical workspace, making it ideal for reading documents, coding, and web browsing without excessive scrolling.

• Pro-Grade Color Accuracy: With 100% DCI-P3 coverage, this screen is factory-calibrated for professional photo editing and color-critical design work.

• Corning® Gorilla® Glass NBT™: Protected by scratch-resistant, chemically-strengthened glass that can withstand the daily use of an active stylus or finger gestures.

• HP Tilt Pen Support: Fully compatible with the HP Rechargeable MPP 2.0 Tilt Pen, supporting pressure sensitivity and tilt for a natural drawing and handwriting experience.

Important Installation Notes

[!CAUTION]

Connector Verification: Most 14-ea models use a 40-pin connector for the 3K2K OLED. If your variant originally had a lower-resolution IPS screen ($1920 \times 1280$), it likely uses a 30-pin cable and will not be compatible with this OLED assembly

• Battery Safety: You must disconnect the internal 66Wh battery before installation. OLED motherboards are highly susceptible to short-circuiting if the screen is connected while powered.

• Bezel Transfer: This assembly typically comes without the plastic bezel. You will need to carefully transfer your original bezel using light heat and specialized electronics adhesive for a flush fit.

Pros and Cons

Conclusion

The HP Spectre x360 14-ea 40-Pin OLED assembly is the ultimate restoration part for HP's flagship 2-in-1. For KSh 28,080, you are getting a premium display that maintains the original visual brilliance of the Spectre brand
