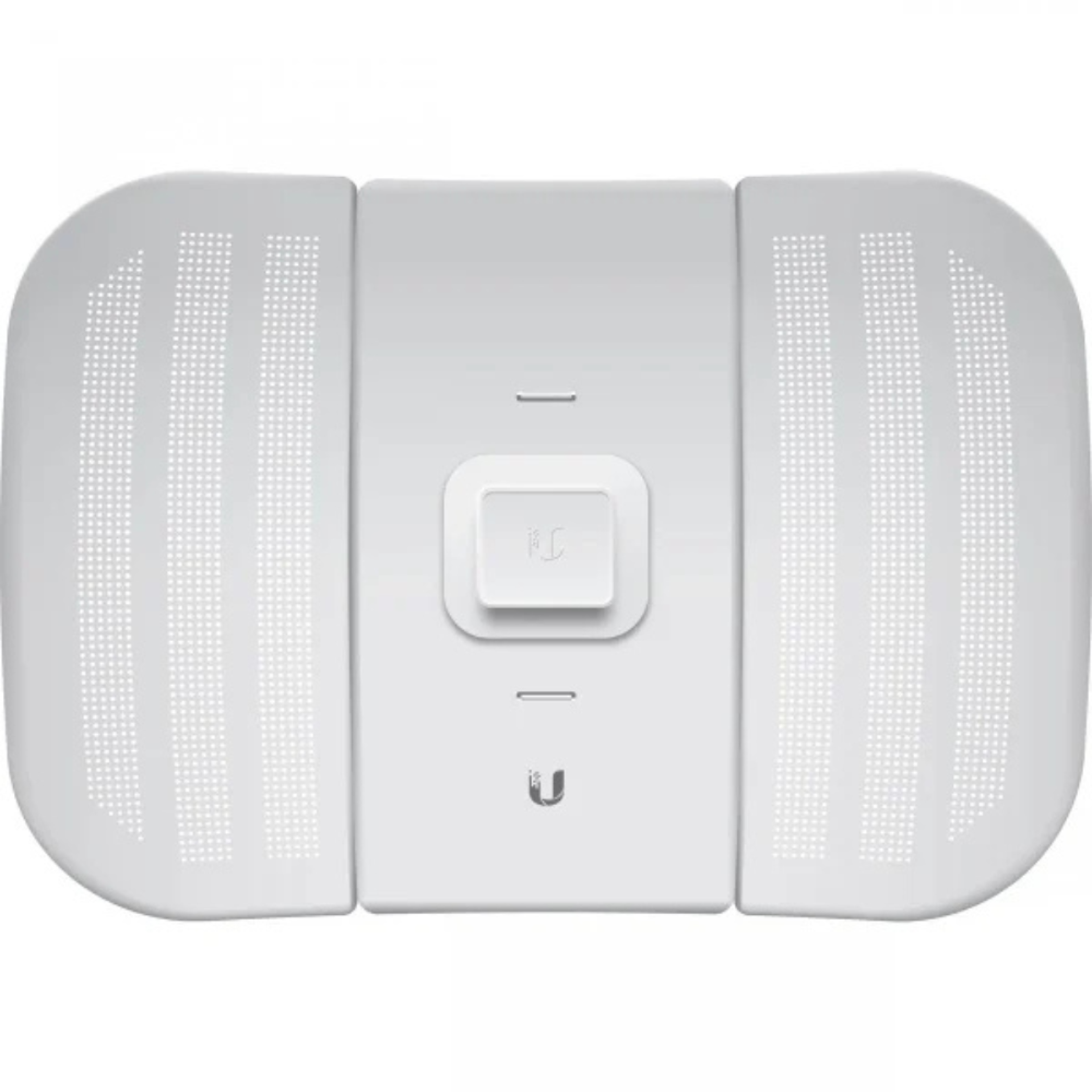

LBE‑M5‑23 – Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE

LBE‑M5‑23 – Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE

• Model: Ubiquiti LBE-M5-23

• Product Name: LiteBeam M5 23dBi 5GHz Wireless Broadband CPE

• Type: Outdoor Wireless Bridge / CPE

• Frequency Band: 5 GHz

• Throughput: Up to 100+ Mbps

• Antenna Gain: 23 dBi

• Processor: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2 RAM, 8 MB Flash

• Networking Interface: 1× 10/100 Mbps Ethernet port

• Power Method: Passive PoE (24V, 0.2A PoE adapter included)

• Power Consumption: 6W max

• Range: Up to 30+ km (line of sight)

• Beamwidth: 7° (horizontal/vertical)

• Operating Mode: Access Point, Station, or Bridge

• Management System: airOS for easy configuration and monitoring

• Features:

  • Lightweight, high-gain directional antenna

  • Excellent noise immunity for long-range wireless links

• Enclosure: Weatherproof and UV-resistant for outdoor use

• Operating Temperature: -40°C to 70°C

• Dimensions: 362 × 267 × 184 mm

• Weight: 0.750 kg

• Certifications: FCC, IC, CE

LBE‑M5‑23 – Ubiquiti LiteBeam M5 23dBi 5GHz Wireless Broadband CPE

The Ubiquiti LiteBeam M5 (LBE-M5-23) is a compact and efficient outdoor wireless CPE designed for long-range point-to-point and point-to-multipoint applications. Operating on the 5GHz frequency band, it delivers over 100 Mbps real throughput and features a 23 dBi directional antenna. With its lightweight design and integrated airMAX technology, the LiteBeam M5 is ideal for ISPs, surveillance systems, and remote connectivity across Kenya.

Price in Kenya

Key Specifications

Design and Build

The LiteBeam M5 features a lightweight and compact design with a quick-assembly reflector dish. Its 23 dBi antenna is integrated into a streamlined form factor, making it easy to install and align. Built for outdoor deployment, the enclosure is UV-stabilized and weather-resistant, ensuring reliable performance in harsh environments. The device is pole-mountable and includes a single Ethernet port with Passive PoE support.

Ubiquiti LiteBeam M5 Features and Performance

• Ubiquiti LiteBeam M5 delivers 100+ Mbps real throughput

• Ubiquiti LiteBeam M5 supports long-range links over 10 km

• Ubiquiti LiteBeam M5 includes 23 dBi directional antenna for focused signal

• Ubiquiti LiteBeam M5 integrates airMAX protocol for efficient bandwidth use

• Ubiquiti LiteBeam M5 features a weatherproof design for outdoor deployment

Ubiquiti LiteBeam M5 Ideal Use Cases

• Ubiquiti LiteBeam M5 for ISPs delivering rural or suburban connectivity

• Ubiquiti LiteBeam M5 for surveillance systems requiring stable wireless links

• Ubiquiti LiteBeam M5 for enterprise networks bridging remote buildings

• Ubiquiti LiteBeam M5 for farms and remote facilities needing internet access

• Ubiquiti LiteBeam M5 for educational institutions connecting campuses

Ubiquiti LiteBeam M5 Highlights or Smart Features

• Ubiquiti LiteBeam M5 uses airMAX technology for high performance

• Ubiquiti LiteBeam M5 offers high noise immunity in congested areas

• Ubiquiti LiteBeam M5 features a tool-less quick-mount design

• Ubiquiti LiteBeam M5 supports remote monitoring and configuration

• Ubiquiti LiteBeam M5 is compatible with Ubiquiti’s UISP platform

Ubiquiti LiteBeam M5 Pros and Cons

Frequently Asked Questions (FAQs)

1. What is the range of the Ubiquiti LiteBeam M5? It supports wireless links over 10 kilometers with clear line-of-sight.

2. Does the LiteBeam M5 support PoE? Yes, it uses Passive PoE and includes a 10/100 Mbps Ethernet port.

3. Is the device weatherproof? Yes, it is designed for outdoor use and is resistant to UV and harsh weather.

4. What kind of antenna does it use? It features a 23 dBi directional antenna integrated into the reflector dish.

5. Can I use the LiteBeam M5 for home internet? Yes, but it’s best suited for long-distance links between buildings or remote areas.

6. Where can I buy the LiteBeam M5 in Kenya? It is available at tech retailers and online stores for around KSh 7,500.

Conclusion

The Ubiquiti LiteBeam M5 (LBE-M5-23) is a reliable and cost-effective solution for long-range wireless connectivity. With its high-gain antenna, airMAX technology, and weatherproof design, it’s ideal for ISPs, enterprises, and remote installations. Priced at KSh 7,500 in Kenya, it offers excellent value for high-performance outdoor networking.
