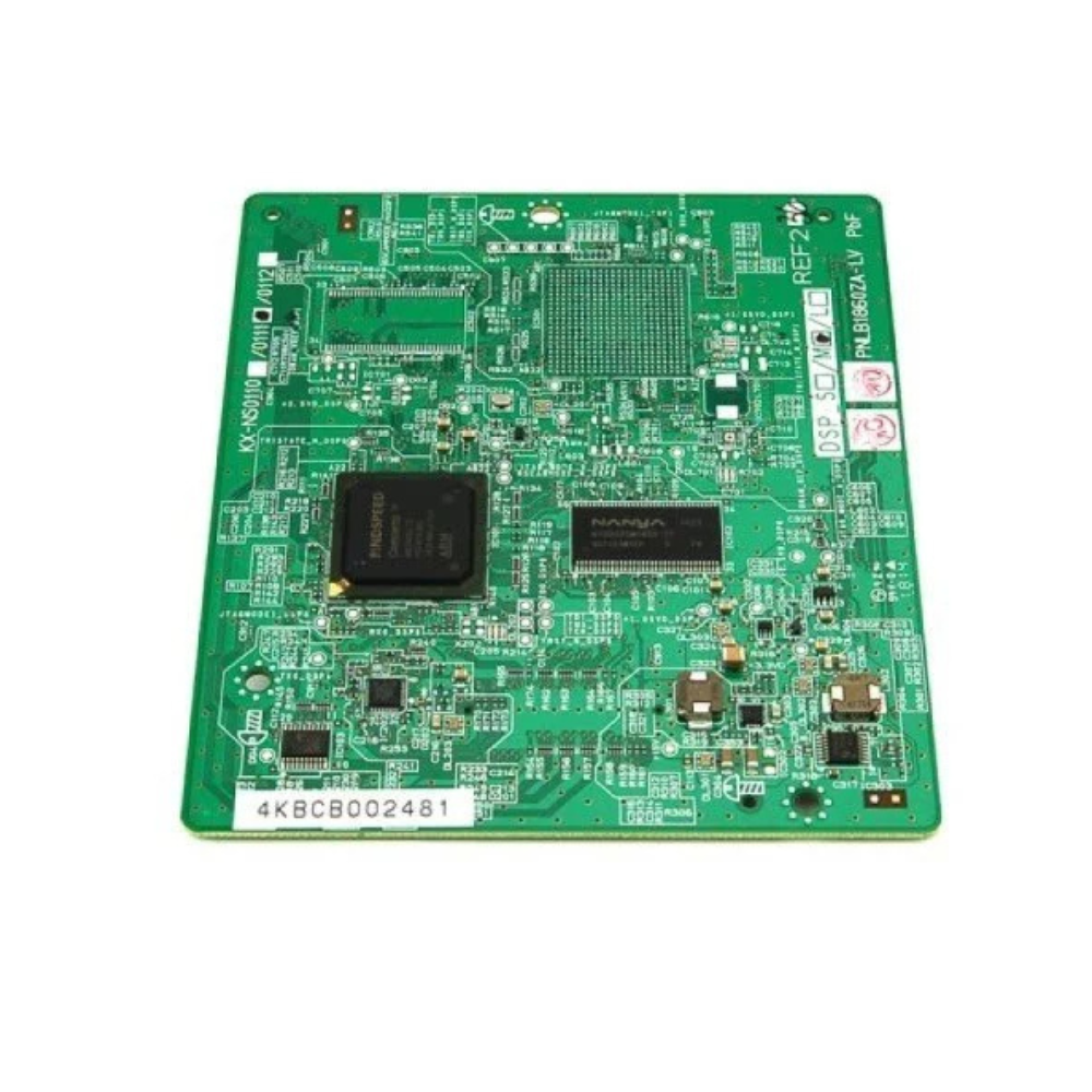

Panasonic KX-NS5110X VoIP DSP Card

Panasonic KX-NS5110X VoIP DSP Card Overview

The KX-NS5110X is designed to enhance the VoIP capabilities of Panasonic Unified Communication Servers such as the KX-NS300, KX-NS500, and KX-NS700. It enables high-quality voice communication, SIP trunking, IP extensions, and unified messaging. This card is essential for businesses expanding their IP telephony infrastructure.

Panasonic KX-NS5110X VoIP DSP Card Key Features

• Voice Channels: Supports up to 63 simultaneous voice channels

• Licensing: Includes activated license for 4 IP proprietary telephones

• Codec Support: G.711 (standard), G.722 (wideband), G.729A (compressed)

• Fax Support: Compatible with T.38 fax transmission protocol

• DISA Expansion: Increases DISA channels to 30

• Applications: VoIP trunking, SIP extensions, IP DECT integration, unified messaging

• Installation: Slot-based card for KX-NS series PBX base units

• Integration: Supports IP camera and SIP video phone connectivity

• System Recording: Enables recording of telephone conversations

• Compatibility: Works with KX-NS300, KX-NS500, KX-NS700 systems

Panasonic KX-NS5110X VoIP DSP Card Specifications

Panasonic KX-NS5110X VoIP DSP Card Price in Kenya

Panasonic KX-NS5110X VoIP DSP Card Design and Build

• Compact expansion card for PBX slot installation

• LED indicators for operational status

• Durable components for continuous enterprise use

• Designed for seamless integration with Panasonic telephony systems

Panasonic KX-NS5110X VoIP DSP Card System Applications

• Expands VoIP capabilities of Panasonic PBX systems

• Enables SIP trunking and IP phone registration

• Supports unified messaging and conferencing features

• Integrates with IP DECT antennas and video endpoints

• Ideal for medium to large business communication setups

Panasonic KX-NS5110X VoIP DSP Card Performance

• High-quality voice transmission with wide codec support

• Efficient bandwidth usage with G.729A compression

• Reliable fax transmission via T.38 protocol

• Scalable voice channel capacity for growing businesses

• Enhanced call handling and recording features

Panasonic KX-NS5110X VoIP DSP Card Ideal Use Cases

• Office PBX system expansion

• SIP trunk integration for VoIP calling

• IP phone and DECT handset deployment

• Unified messaging and conferencing

• Secure voice recording and monitoring

Panasonic KX-NS5110X VoIP DSP Card FAQs

Is it compatible with KX-NS500?

Yes, it works with KX-NS300, KX-NS500, and KX-NS700 systems.

Does it support fax over IP?

Yes, it supports the T.38 fax transmission protocol.

How many IP phones can it activate?

 It includes licenses for 4 IP proprietary telephones.

Can it be used for call recording?

Yes, it enables system-level recording of telephone conversations.
