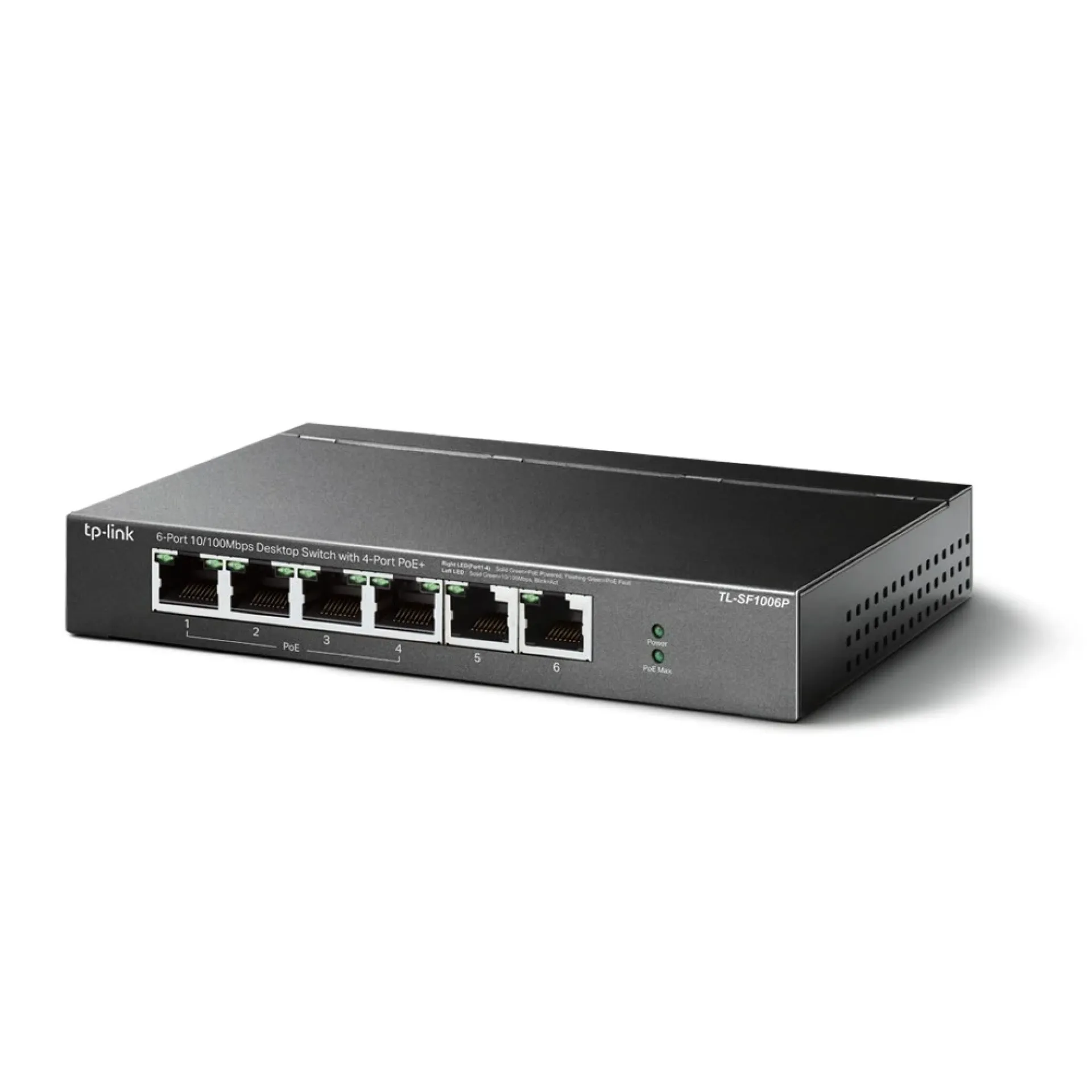

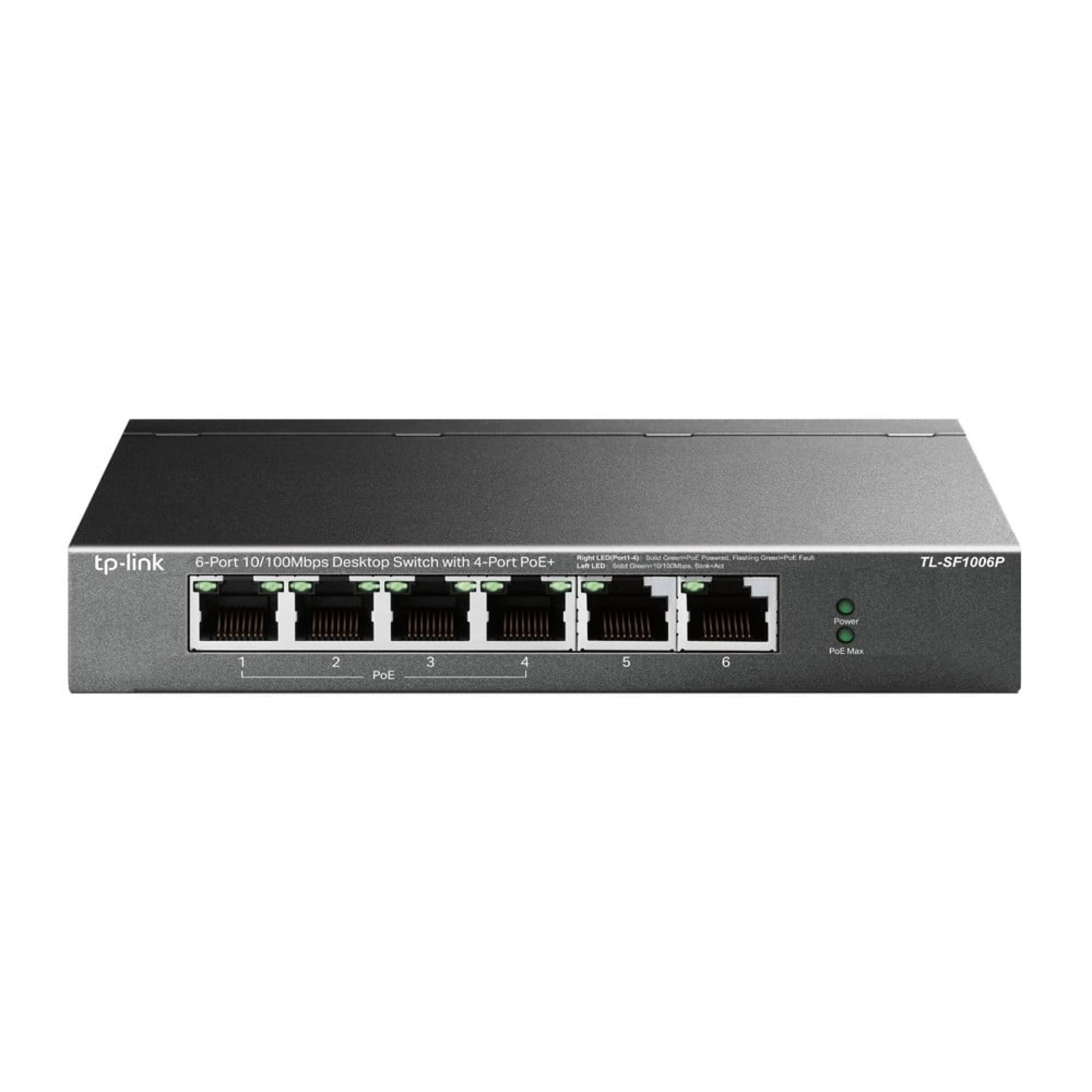

TP-Link 6-Port 10/100Mbps Desktop Switch- TL-SF1006P

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

The TP-Link TL-SF1006P is a reliable and compact 6-port desktop network switch designed for small offices and home networks requiring Power over Ethernet (PoE). With four PoE+ ports, it can power IP cameras, VoIP phones, and wireless access points without the need for additional power cables. It’s plug-and-play, efficient, and features a fanless design for quiet operation.

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ Key Features

• Model: TL-SF1006P

• Ports: 6 × 10/100 Mbps RJ45 ports

• PoE Support: 4 × PoE+ ports supporting IEEE 802.3af/at

• Total PoE Power Budget: 65W

• Switching Capacity: 1.2 Gbps

• Forwarding Rate: 0.893 Mpps

• Fanless Design: Ensures silent operation for quiet environments

• Plug and Play: No configuration required

• PoE Auto Recovery: Automatically reboots unresponsive PoE devices

• Mounting Options: Desktop and wall-mountable

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ Unique Selling Points

• Provides both data and power via a single Ethernet cable for PoE devices.

• 65W total PoE power budget ideal for IP cameras and access points.

• Intelligent power management automatically protects the switch from overload.

• Durable metal housing ensures longevity and heat dissipation.

• Supports plug-and-play for instant setup without complex configuration.

• Silent operation suitable for office or home environments.

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ Specifications

This table summarizes the key technical details of the TL-SF1006P for quick reference.

This table provides a clear breakdown of the TL-SF1006P’s technical parameters for performance and reliability.

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ Price in Kenya

This price range reflects the switch’s PoE+ support, compact build, and reliability for small networks.

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ General Information

• Model: TL-SF1006P
• Type: 6-Port 10/100 Mbps Unmanaged PoE+ Switch
• Design: Compact metal housing with desktop and wall-mount support

TP-Link TL-SF1006P Network and Power Specifications

• Ports: 6 × 10/100 Mbps RJ45 with auto-negotiation

• PoE Ports: 4 × IEEE 802.3af/at compliant ports (up to 30W per port)

• Total PoE Power Budget: 65W

• Switching Capacity: 1.2 Gbps

• Forwarding Rate: 0.893 Mpps

• Transmission Method: Store-and-Forward architecture

TP-Link TL-SF1006P Power Efficiency

• Power Supply: 52V DC, 1.25A external adapter

• Power Consumption: 3.2W (no load) / 72.5W (full load)

• Intelligent Power Management: Ensures stable PoE power delivery

• Energy Saving Technology: Reduces power usage during low activity

TP-Link TL-SF1006P Physical Specifications

• Dimensions: 200 × 115 × 27 mm

• Weight: 340 g

• Fan: None (silent operation)

• Mounting: Desktop and wall-mountable design

• Housing: Metal for better heat dissipation

TP-Link TL-SF1006P Environmental Specifications

• Operating Temperature: 0°C to 40°C

• Storage Temperature: -40°C to 70°C

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

TP-Link TL-SF1006P Ideal Applications

• Small Office and Home Networks

• IP Camera Installations and NVR Systems

• VoIP Phone Systems

• Small Business Access Points and Wireless Networks

TP-Link TL-SF1006P Notable Advantages

• PoE+ support simplifies power and data delivery for network devices.

• Fanless, metal design for quiet and durable performance.

• Plug-and-play installation eliminates complex configuration.

• Smart power allocation prevents overload and device damage.

• Compact and wall-mountable for flexible deployment.

TP-Link TL-SF1006P Common Queries

1. Does the TL-SF1006P support PoE+?
Yes, four of the six ports support IEEE 802.3af/at PoE+ with a total budget of 65W.

2. Can it power IP cameras and access points?
Yes, it’s ideal for PoE devices such as IP cameras, APs, and VoIP phones.

3. Is configuration required?
No, it’s plug-and-play with automatic detection of connected devices.

4. Does it make noise during operation?
No, it features a fanless design for silent performance.

5. Is it wall-mountable?
Yes, it can be placed on a desk or mounted on a wall for convenience.

6. What is the warranty period?
The TL-SF1006P comes with a standard 1-year manufacturer’s warranty.
