Ubiquiti PowerBeam M5 400 (PBE-M5-400)

Ubiquiti PowerBeam M5 400 (PBE-M5-400)

• Model: Ubiquiti PowerBeam M5 400 (PBE-M5-400)

• Type: Outdoor Wireless Bridge / CPE

• Frequency: 5 GHz

• Throughput: Up to 150+ Mbps

• Antenna Gain: 25 dBi

• Processor: Atheros MIPS 74Kc, 560 MHz

• Memory: 64 MB DDR2 RAM, 8 MB Flash

• Networking Interface: 1× 10/100 Mbps Ethernet port

• Maximum Power Consumption: 8W

• Power Method: Passive PoE (24V, 0.5A Gigabit PoE adapter included)

• Range: Up to 25 km (line of sight)

• Operating Mode: Access Point, Station, or Bridge

• Mounting: Integrated dish reflector for high-performance point-to-point links

• Operating Temperature: -40°C to 70°C

• Enclosure: Weatherproof for outdoor installations

• Dimensions: 420 mm (diameter) × 230 mm (depth)

• Weight: 1.753 kg

• Regulatory Approvals: FCC, IC, CE

Ubiquiti PowerBeam M5 400 (PBE-M5-400)

The Ubiquiti PowerBeam M5 400 (PBE-M5-400) is a high-performance outdoor wireless bridge designed for long-range point-to-point (PtP) and point-to-multipoint (PtMP) applications. Operating on the 5GHz frequency band, it delivers over 150 Mbps real TCP/IP throughput and supports distances of more than 25 kilometers. With its integrated airMAX technology and 25 dBi gain, the PowerBeam M5 400 is ideal for ISPs, surveillance systems, and remote connectivity setups across Kenya.

Ubiquiti PowerBeam M5 400 (PBE-M5-400) Price in Kenya

Ubiquiti PowerBeam M5 400 (PBE-M5-400) Key Specifications

Ubiquiti PowerBeam M5 400 (PBE-M5-400) Design and Build

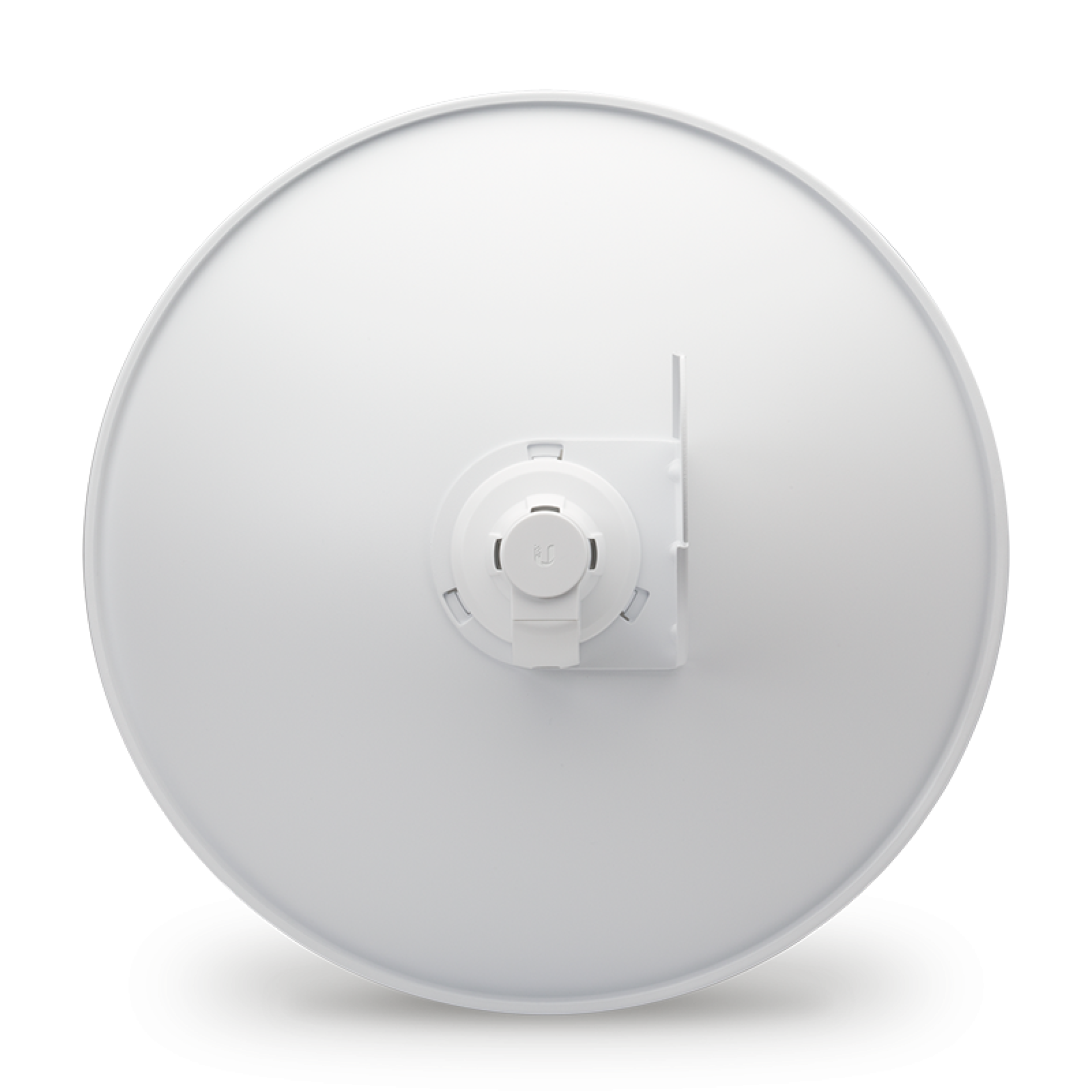

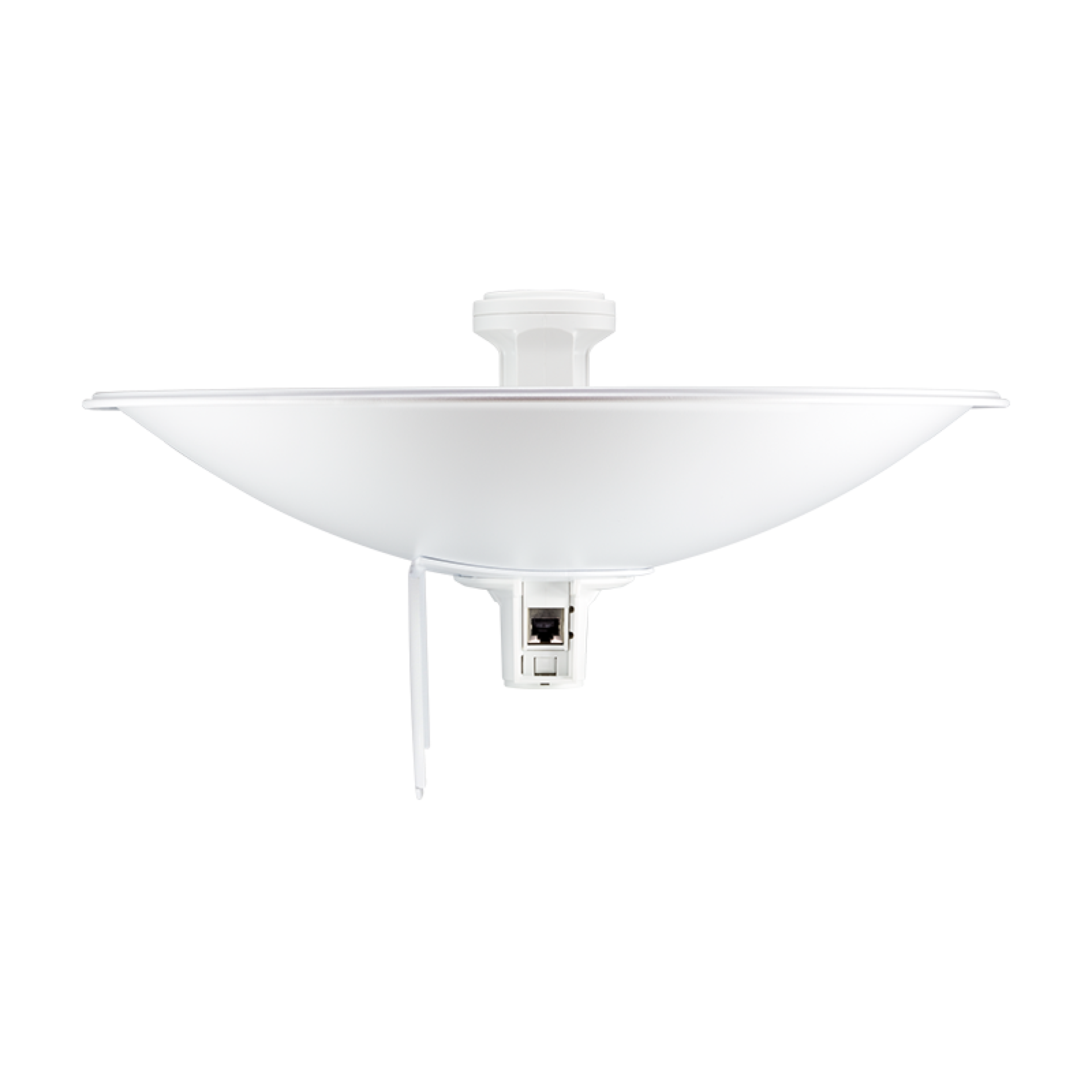

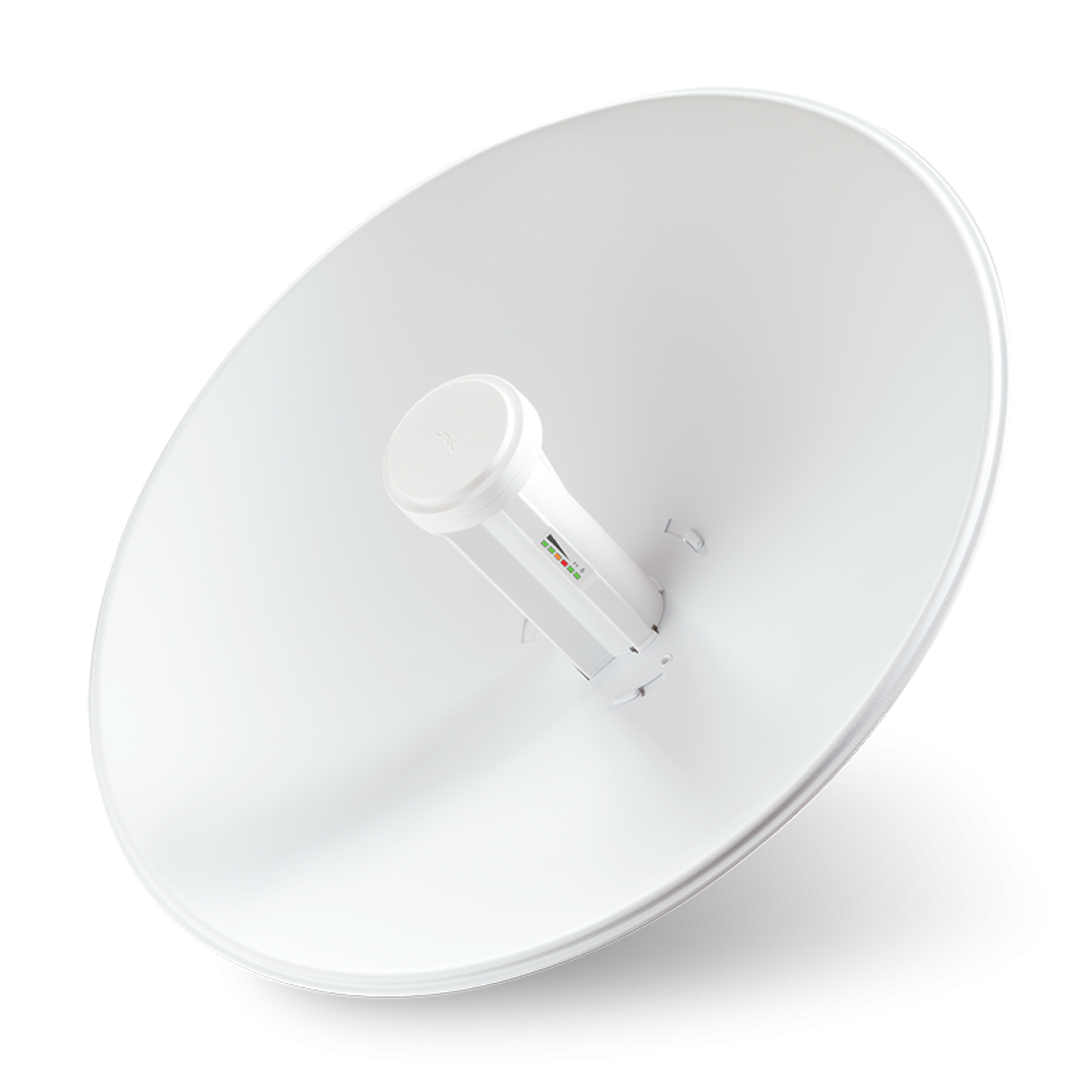

The PowerBeam M5 400 features a compact, all-in-one design that integrates the radio and antenna into a single unit. Its 400 mm dish reflector enhances signal focus and noise immunity, making it suitable for high-interference environments. The unit is built for outdoor deployment, with a rugged, weatherproof casing that withstands harsh conditions. Installation is straightforward, thanks to its pole-mountable bracket and lightweight construction.

Ubiquiti PowerBeam M5 400 Features and Performance

• Ubiquiti PowerBeam M5 400 delivers 150+ Mbps real TCP/IP throughput

• Ubiquiti PowerBeam M5 400 supports long-range links over 25 km

• Ubiquiti PowerBeam M5 400 includes 25 dBi gain for focused signal transmission

• Ubiquiti PowerBeam M5 400 integrates airMAX TDMA protocol for efficient bandwidth use

• Ubiquiti PowerBeam M5 400 features a weatherproof design for outdoor deployment

Ubiquiti PowerBeam M5 400 Ideal Use Cases

• Ubiquiti PowerBeam M5 400 for Internet Service Providers (ISPs) delivering rural connectivity

• Ubiquiti PowerBeam M5 400 for surveillance systems requiring stable long-distance links

• Ubiquiti PowerBeam M5 400 for enterprise networks bridging remote offices

• Ubiquiti PowerBeam M5 400 for educational institutions connecting campus buildings

• Ubiquiti PowerBeam M5 400 for farms and remote facilities needing reliable internet

Ubiquiti PowerBeam M5 400 Highlights or Smart Features

• Ubiquiti PowerBeam M5 400 uses airMAX technology for enhanced performance

• Ubiquiti PowerBeam M5 400 includes Intelligent QoS for prioritizing bandwidth

• Ubiquiti PowerBeam M5 400 supports remote management via Ubiquiti software

• Ubiquiti PowerBeam M5 400 offers high noise immunity for urban and rural setups

• Ubiquiti PowerBeam M5 400 features a compact, integrated design reducing cable clutter

Ubiquiti PowerBeam M5 400 Pros and Cons

Frequently Asked Questions (FAQs)

1. What is the maximum range of the Ubiquiti PowerBeam M5 400? It supports wireless links over 25 kilometers with proper line-of-sight.

2. Can I use the PowerBeam M5 400 for home internet? Yes, but it’s best suited for long-distance links between buildings or remote areas.

3. Does the device support PoE? Yes, it includes a 10/100 Mbps Ethernet port with Passive PoE support.

4. Is the PowerBeam M5 400 weatherproof? Yes, it is designed for outdoor use and can withstand harsh weather conditions.

5. What kind of antenna does it use? It features a 25 dBi directional antenna with a 400 mm dish reflector.

6. Where can I buy the PowerBeam M5 400 in Kenya? It is available at tech stores like Almiria Techstore, Ubiquiti Shop Kenya, and Wavetech for around KSh 15,500.

Conclusion

The Ubiquiti PowerBeam M5 400 (PBE-M5-400) is a robust and reliable solution for long-range wireless connectivity. With its high gain antenna, airMAX technology, and weatherproof design, it delivers consistent performance in demanding environments. Priced at KSh 15,500 in Kenya, it offers excellent value for ISPs, enterprises, and remote installations.
