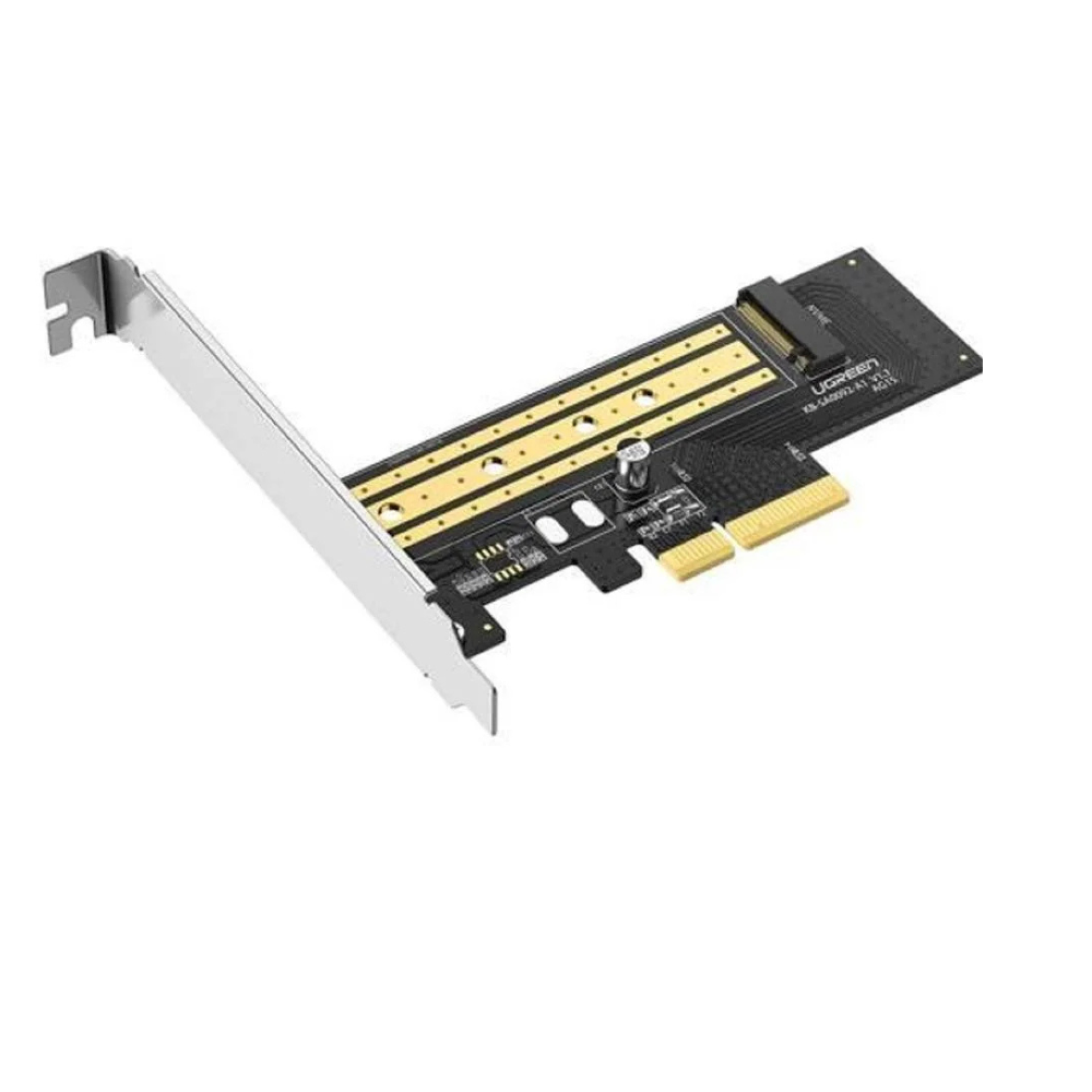

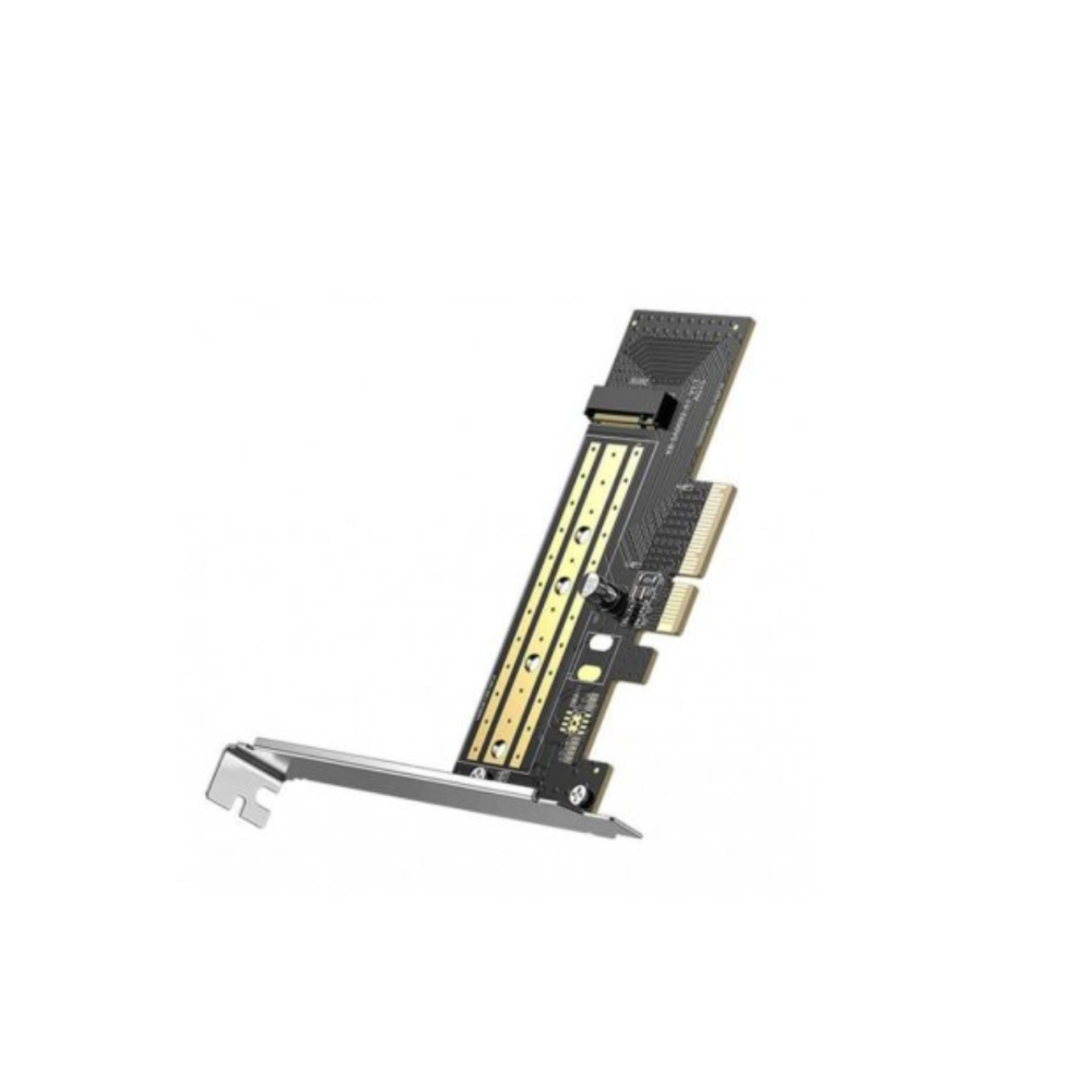

UGREEN M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302-UG-70503

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Description

The Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 is a high-speed adapter designed to add M.2 NVMe or SATA SSDs to desktop PCs via a PCIe slot. It supports PCIe 3.0 x4 interface for blazing-fast data transfer up to 32Gbps and is compatible with various M.2 SSD sizes. Ideal for upgrading storage performance in gaming rigs, workstations, and servers.

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Key Features

• Adds M.2 NVMe (M-Key) or SATA (B+M Key) SSD to desktop PCs

• PCIe 3.0 x4 interface with up to 32Gbps transfer rate

• Supports M.2 SSD sizes: 2230, 2242, 2260, 2280

• Compatible with PCIe 3.0, 2.0, and 1.0 motherboards

• Multi-layer PCB with EMI, overcurrent, overvoltage, and short-circuit protection

• Tool-free SSD mounting with thermal pad included

• No driver installation required

• Compatible with Windows 7/8/10/11 and Linux

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Specifications

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Price in Kenya

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Design and Build

• Compact PCIe form factor with full-size bracket

• Multi-layer PCB for signal integrity and heat control

• Includes mounting screws and thermal pad

• Matte black finish with labeled slots

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Performance & Compatibility

• Boosts system performance with NVMe SSDs

• Compatible with most desktop motherboards

• Supports both NVMe and SATA M.2 SSDs

• Ideal for gaming, video editing, and data-intensive tasks

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Ideal Use Cases

• Upgrading desktop storage with NVMe SSD

• Adding secondary SSD for games or media

• Replacing slow SATA drives with faster NVMe

• Building high-performance workstations

Ugreen M.2 NVMe to PCI-E 3.0 × 4 Expansion Card CM302 – UG-70503 – Buyer’s Guide Q&A

Does it support both NVMe and SATA SSDs?

 Yes, it supports M-Key NVMe and B+M Key SATA M.2 SSDs.

Is it compatible with older PCIe slots?

Yes, it works with PCIe 3.0, 2.0, and 1.0 slots.

Do I need to install drivers?

 No, it’s plug-and-play for supported operating systems.

Is warranty available in Kenya?

 Yes, warranty is available through authorized Ugreen retailers.
